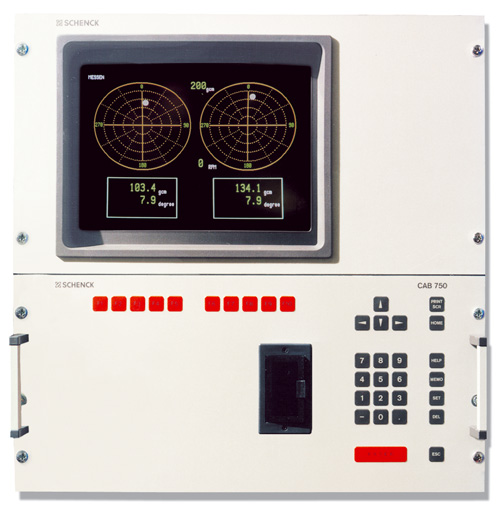

CAB 750 is the instrument of choice for
series production. Through multi-processor technology and effective
multi-tasking it’s more than just a balance measuring unit: measurement
assessment, correction calculation and control, fault diagnostics, and data
transfer run simultaneously. The instrument is a multi-functional measurement
and control system. It guarantees the shortest system times, converts unbalance
into effective correction and exchanges signals with peripheral equipment.
Digital technology and efficient operating concept with software- supported setup procedures minimize non-productive time for the balancing machine and measuring system. The data memory for known type data and important machine and correction parameters allow setup by push-button or automatically through an external command.
Diagnostic tools isolate disturbances and the expense of setting up after an exchange of components is minimal.

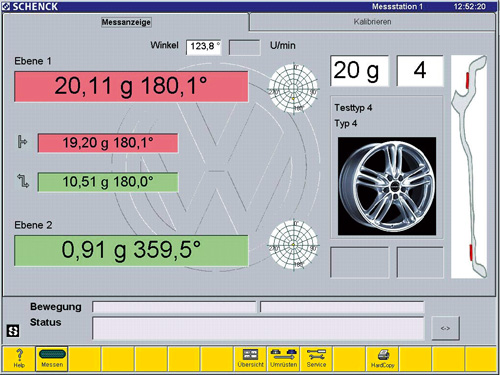

With CAB 750 you are also able to switch between types of correction after the measurement - precisely down to the last digit (whether polar or in components, in metric or imperial units, as digital values, vector displays or color graphics).
The optimal correction calculation is carried out automatically and without error whether through drilling, milling, welding, grinding, classification, in components or polar, in one or more planes, in multiple processing steps, in fixed or iterative systems. Up to 12 digital axes are controlled for positioning the work-piece and the tools, in operation and during the setup process.
Needless to say, this powerful instrument also provides for statistical process control.
High productivity and flexibility are the measures by which modern
production lines are judged. If you want to remain effective, you must react
quickly to trends, implement lean production and offer a convincing level of
quality. This calls for technologies that guarantee productivity, flexibility
Balancing machines in the production line are presented with particular challenges. Adaptability for the solution of individualbalancing tasks, extreme accuracy, high production volumes and a technology that takes not only people but also the production environment into account.
Our microprocessor-based measuring units are ideally suited to meet these challenges. Reliable hardware, easily understood software and the modular, service-friendly design help you to secure you competitiveness for the long run.

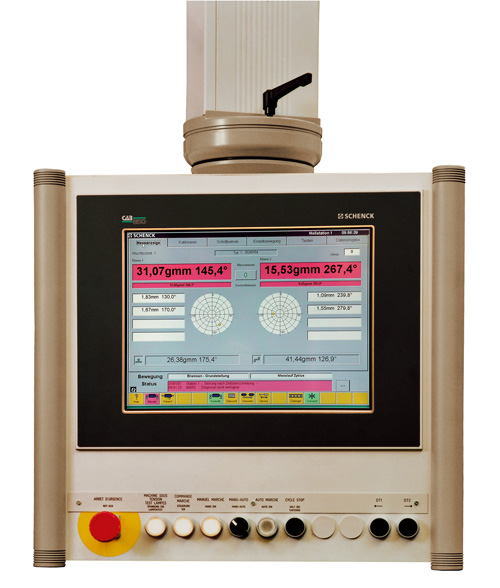

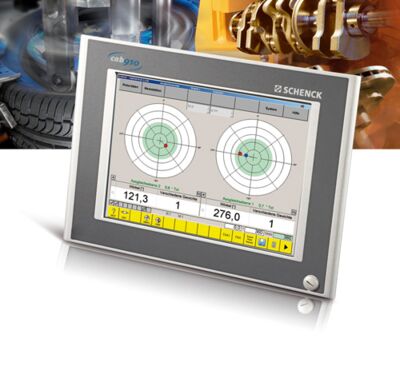

The CAB 950 is the combination of precise
measurement technology and the most up to date control technology, robust
design, and the simplest handling. All integrated in a system with a consistent
operating philosophy, uniform operator interface and a full range of
CAB 950 contains the complete functionality of its predecessors the CAB 850 and CAB 750. Significant enhancements have been made to the production integration, operator ergonomics and remote diagnostics. The integrated Siemens PLC allows you, for example, to control loading and unloading equipment. Thanks to the network capabilities of the industrial PC with MS Windows XP and the Schenk Computer Aided Balancing (CAB), you can call off the statistical process control data, for example, from the comfort of your office. If, in spite of the extensive test routines, plausibility checks and the practice-oriented Help system you need Schenk’s help, you will very quickly find a solution using the integrated online remote diagnostics, Teleservice.
As standard, there are versions of the CAB 950 for:
|Technical data at a glance||CAB 750||CAB 850||CAB 950|
|Digital-multiplication measuring principle||•||•||•|
|Sampling time optimization||•||•||•|
|Correction value calculation||•||•||•|
|Automatic correction control||•||•||•|
|High resolution screen display||•||•|
|Multi function keyboard||•|
|Separate storage medium||•||•||•|
|Centronics interface (printers)||•||•|
|Interface (RS 232; V24)||•||•||•|
|Serial interface (COM)||•||•|
|Serial interface, Ethernet||•||•|
|Control interface, standard||•||•||•|
|Control interface, Profi-/Inter-Bus||•||•||•|
|Interface for 2 display units||•||•|
|Interface for external keyboard||•||•|
|Reference generator connection||1||1||1|
|Vibrations sensor connections||2||2||1 - 4|
|Display resolution||640 x 400||1024 x 768||1024 x 768|
|Measurement uncertainty||[gmm]||depending on the balancing machine||depending on the balancing machine||depending on the balancing machine|
|Measuring speed||[min -1]||150 - 10.000||150 - 10.000||150 - 40.000|
|Unbalance measuring range||1 : 1.000.000||1 : 1.000.000||1 : 1.000.000|
|Measurement time, approx.||[s]||1,5 - 6||1,5 - 6||1,5 - 6|
|Type data memory||100||10.000||2)||2)|
|Dimensions (19ââ rack)||[HE]||11||16||16|
|Power requirement 1)||[V]||115 / 230||115 / 230||115 / 230|
|For the mentioned measuring units a multiplicity of extensions and software options are available that are only partially discribed here. To adapt these to your specific task please consult one of our tecjnoical personnel.|
|1) + 6% / -10%, 50/60 Hz|
|2) Unlimited with external data storage medium|
|o.r. On request|
